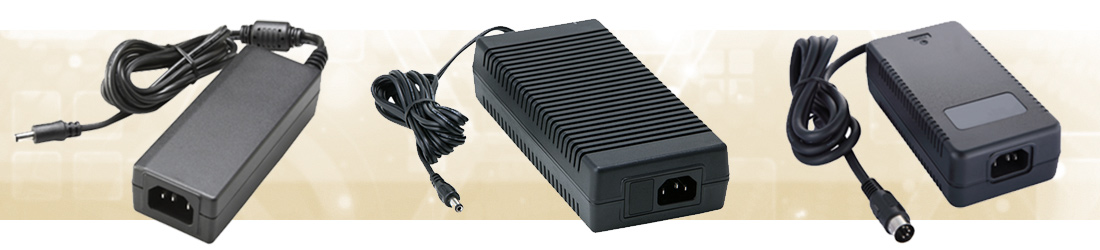

External Power Adapters from Beta Dyne are available in power levels from 15W to 150W and standard output voltages from 3.3VDC to 48VDC, for both General Purpose and Medical applications. These versatile power adapters are certified for Class I and II configuration, MOPP Safety, as well as DOE Class V and VI efficiency specifications. Many custom output voltage and connector options are available. Contact factory for details.

Model SeriesOutput PowerAC InputInput Receptacle# OutputsOutput VoltagesFeaturesPackageDatasheet
SPU16A15W90-264VACIEC-320-C1413.3, 5, 6, 10, 12, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, DoE VI1.50”x3.58”x1.42”DOWNLOAD
DATASHEET
MPU16A
medical
15W80-275VACIEC-320-C1415, 6, 10, 12, 15, 18, 24, 30, 36Medical Ed. 3.1, 2 MOPP, Class I Input1.65”x4.11”x1.22”DOWNLOAD
DATASHEET
SPU21A20W90-264VACIEC-320-C1415, 10, 12, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, DoE VI1.65”x4.11”x1.22”DOWNLOAD
DATASHEET
SPU25A25W90-264VACIEC-320-C1415, 6, 10, 12, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, CEC IV & V1.65”x4.11”x1.22”DOWNLOAD
DATASHEET
MPU32A
medical
30W80-275VACIEC-320-C1415, 6, 10, 12, 15, 18, 24, 30, 36, 48Medical 3rd Ed, 2 MOPP, Class I Input1.85”x4.21”x1.17”DOWNLOAD
DATASHEET
SPU41A40W90-264VACIEC-320-C1415, 10, 12, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, DoE VI1.85”x4.21”x1.19”DOWNLOAD
DATASHEET
SPU61A60W90-264VACIEC-320-C14112, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, DoE VI1.85”x4.65”x1.19”DOWNLOAD
DATASHEET
MPU60A
medical
63W80-275VACIEC-320-C14112, 15, 18, 24, 30, 36, 48Medical Ed. 3.1, 2 MOPP, Class I Input2.18”x5.17”x1.46”DOWNLOAD
DATASHEET
MPU64
medical
63W80-275VACIEC-320-C1415, 7, 9, 12, 15, 18, 24, 30, 36Medical Ed. 3.1, 2 MOPP, CEC V, Class I Input2.99”x5.75”x1.69”DOWNLOAD
DATASHEET
SPU100100W90-260VACIEC-320-C14112, 15, 18, 24, 30, 36, 48IEC-320 Class I Input, DoE VI2.99”x5.75”x1.69”DOWNLOAD
DATASHEET
MPU101
medical
100W90-260VACIEC-320-C1415, 6, 10, 12, 15, 18, 24, 30, 36Medical Ed. 3.1, 2 MOPP, Class I Input3.52”x7.44”x1.79”DOWNLOAD
DATASHEET
SPU131130W90-260VACIEC-320-C14112, 15, 18, 24, 30, 36, 48, 55IEC-320 Class I Input, DoE VI, ON/OFF Switch Option3.52”x7.44”x1.79”DOWNLOAD
DATASHEET
MPU130
medical
130W90-260VACIEC-320-C14112, 24Medical Ed. 3.1, 2 MOPP, Class I Input3.52”x7.40”x1.94”DOWNLOAD
DATASHEET
SPU150150W90-260VACIEC-320-C14124IEC-320 Class I Input, DoE VI, ON/OFF Switch Option3.52”x7.44”x1.79”DOWNLOAD
DATASHEET
